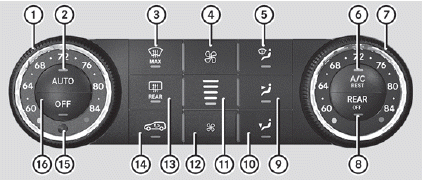

Control panel for dual-zone automatic climate control

1 To set the temperature, left

1 To set the temperature, left
2 To set climate control to automatic
3 To defrost the windshield
4 To increase the airflow
5 To direct the airflow through the defroster vents
6 To activate/deactivate cooling with air dehumidification
7 To set the temperature, right
8 To switch rear-compartment climate control on/off
9 To direct the airflow through the center and side air vents
10 To direct the airflow to the footwells and side air vents
11 To display the airflow level
12 To reduce the airflow
13 To switch the rear window defroster on/off
14 To activate/deactivate air-recirculation mode
15 Interior temperature sensor
16 To switch climate control on/off
