Extending/retracting from the rear

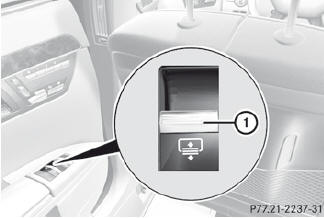

The switch is located on the rear door control panel.
Extending
Pull switch 1 up and release it.
The roller sunblind extends fully.
To stop: press switch 1 down briefly.
The roller sunblind stops briefly and then retracts again.
Retracting
Press switch 1 down past the point of
resistance and release it.
The roller sunblind retracts fully.
To stop: pull switch 1 up.
The roller sunblind stops briefly and then extends again.
