AMG displays
•► Press
on the steering wheel
to select the AMG menu.

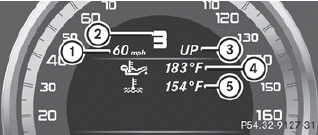

1. Digital speedometer
2. Gear indicator
3. Upshift indicator
4. Engine oil temperature
5. Coolant temperature
Upshift indicator UP 3 indicates that the engine has reached the overrevving range when in the manual gearshift program.
Upshift indicator UP 3 fades out other messages until you have shifted up.
When the engine oil temperature is below 80 °C, the oil temperature is shown in blue.
Avoid driving at full engine output during this time.
