Activating the HOLD function
•► Make sure that the activation conditions are met.
•► Depress the brake pedal.

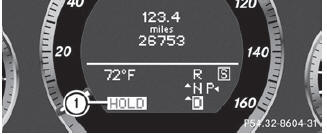

•► Quickly depress the brake pedal further until HOLD display 1 appears in the multifunction display.
The HOLD function is activated. You can release the brake pedal.
If depressing the brake pedal the first time does not activate the HOLD function, wait briefly and then try again.
WARNING
The vehicle's brakes are applied when the
HOLD function is activated. For this reason,
deactivate the HOLD function if the vehicle is
to be set in motion by other means (e.g. in a
car wash or by towing).
See also:
Detaching and storing the cargo net
Detach guide rod 2 from bracket 1 ().
Press the red button on the upper and lower guide rods.
Fold the cargo net and roll it up.
Close the two Velcro fasteners on the cargo net holder.
...
Map display
Setting the map orientation
Map orientation
1 Current map orientation
The following display modes are possible:
• North orientation (the map view
is
displayed so that north is always up). ...
Overview
Function
1 COMAND display
2 COMAND controller and function buttons
3 Telephone keypad ...
